FAF27DM71S4詳細信息

prevnext

FAF27DM71S4

訂購熱線：13360667204

詳細信息

關鍵詞：一分鐘299轉減速機電機_FAF27DM71S4_FAF27DT71S4

FAF27DM71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
FAF27DM71S4	77.21	0.25KW	17.0rpm	142N.m	20Kg	4500N	0.90
FAF27DM71S4	72.37	0.25KW	18.0rpm	133N.m	20Kg	4500N	1.00
FAF27DM71S4	63.86	0.25KW	20.0rpm	117N.m	20Kg	4500N	1.10
FAF27DM71S4	56.62	0.25KW	23.0rpm	104N.m	20Kg	4500N	1.25
FAF27DM71S4	50.19	0.25KW	26.0rpm	92N.m	20Kg	4440N	1.40
FAF27DM71S4	46.78	0.25KW	28.0rpm	86N.m	20Kg	4370N	1.50
FAF27DM71S4	40.89	0.25KW	32.0rpm	75N.m	20Kg	4240N	1.75
FAF27DM71S4	38.33	0.25KW	34.0rpm	70N.m	20Kg	4180N	1.85
FAF27DM71S4	33.83	0.25KW	38.0rpm	62N.m	20Kg	4060N	2.10
FAF27DM71S4	29.56	0.25KW	44.0rpm	54N.m	20Kg	3920N	2.40
FAF27DM71S4	27.18	0.25KW	48.0rpm	50N.m	20Kg	3840N	2.60
FAF27DM71S4	23.25	0.25KW	56.0rpm	43N.m	20Kg	3690N	3.00
FAF27DM71S4	20.15	0.25KW	64.0rpm	37N.m	20Kg	3550N	3.50
FAF27DM71S4	18.84	0.25KW	69.0rpm	35N.m	20Kg	3480N	3.80
FAF27DM71S4	16.28	0.25KW	80.0rpm	30N.m	20Kg	3350N	4.40
FAF27DM71S4	13.84	0.25KW	94.0rpm	25N.m	20Kg	3200N	5.10
FAF27DM71S4	12.35	0.25KW	105rpm	23N.m	20Kg	3090N	5.70
FAF27DM71S4	10.55	0.25KW	123rpm	19N.m	20Kg	2950N	6.70
FAF27DM71S4	9.88	0.25KW	132rpm	18N.m	20Kg	2900N	7.20
FAF27DM71S4	9.40	0.25KW	138rpm	17N.m	20Kg	2840N	7.50
FAF27DM71S4	8.13	0.25KW	160rpm	15N.m	20Kg	2720N	8.30
FAF27DM71S4	6.91	0.25KW	188rpm	13N.m	20Kg	2590N	9.00
FAF27DM71S4	6.17	0.25KW	211rpm	11N.m	20Kg	2500N	9.60
FAF27DM71S4	5.27	0.25KW	247rpm	9.7N.m	20Kg	2380N	10.0
FAF27DM71S4	4.93	0.25KW	264rpm	9.1N.m	20Kg	2340N	11.0
FAF27DM71S4	4.16	0.25KW	313rpm	7.6N.m	20Kg	2220N	11.0

FAF27DT71S4減速機電機參數：

型號	減速比	功率	轉數	扭矩	重量	力矩	安全系數
FAF27DT71S4	77.21	0.25KW	17.0rpm	142N.m	20Kg	4500N	0.90
FAF27DT71S4	72.37	0.25KW	18.0rpm	133N.m	20Kg	4500N	1.00
FAF27DT71S4	63.86	0.25KW	20.0rpm	117N.m	20Kg	4500N	1.10
FAF27DT71S4	56.62	0.25KW	23.0rpm	104N.m	20Kg	4500N	1.25
FAF27DT71S4	50.19	0.25KW	26.0rpm	92N.m	20Kg	4440N	1.40
FAF27DT71S4	46.78	0.25KW	28.0rpm	86N.m	20Kg	4370N	1.50
FAF27DT71S4	40.89	0.25KW	32.0rpm	75N.m	20Kg	4240N	1.75
FAF27DT71S4	38.33	0.25KW	34.0rpm	70N.m	20Kg	4180N	1.85
FAF27DT71S4	33.83	0.25KW	38.0rpm	62N.m	20Kg	4060N	2.10
FAF27DT71S4	29.56	0.25KW	44.0rpm	54N.m	20Kg	3920N	2.40
FAF27DT71S4	27.18	0.25KW	48.0rpm	50N.m	20Kg	3840N	2.60
FAF27DT71S4	23.25	0.25KW	56.0rpm	43N.m	20Kg	3690N	3.00
FAF27DT71S4	20.15	0.25KW	64.0rpm	37N.m	20Kg	3550N	3.50
FAF27DT71S4	18.84	0.25KW	69.0rpm	35N.m	20Kg	3480N	3.80
FAF27DT71S4	16.28	0.25KW	80.0rpm	30N.m	20Kg	3350N	4.40
FAF27DT71S4	13.84	0.25KW	94.0rpm	25N.m	20Kg	3200N	5.10
FAF27DT71S4	12.35	0.25KW	105rpm	23N.m	20Kg	3090N	5.70
FAF27DT71S4	10.55	0.25KW	123rpm	19N.m	20Kg	2950N	6.70
FAF27DT71S4	9.88	0.25KW	132rpm	18N.m	20Kg	2900N	7.20
FAF27DT71S4	9.40	0.25KW	138rpm	17N.m	20Kg	2840N	7.50
FAF27DT71S4	8.13	0.25KW	160rpm	15N.m	20Kg	2720N	8.30
FAF27DT71S4	6.91	0.25KW	188rpm	13N.m	20Kg	2590N	9.00
FAF27DT71S4	6.17	0.25KW	211rpm	11N.m	20Kg	2500N	9.60
FAF27DT71S4	5.27	0.25KW	247rpm	9.7N.m	20Kg	2380N	10.0
FAF27DT71S4	4.93	0.25KW	264rpm	9.1N.m	20Kg	2340N	11.0
FAF27DT71S4	4.16	0.25KW	313rpm	7.6N.m	20Kg	2220N	11.0

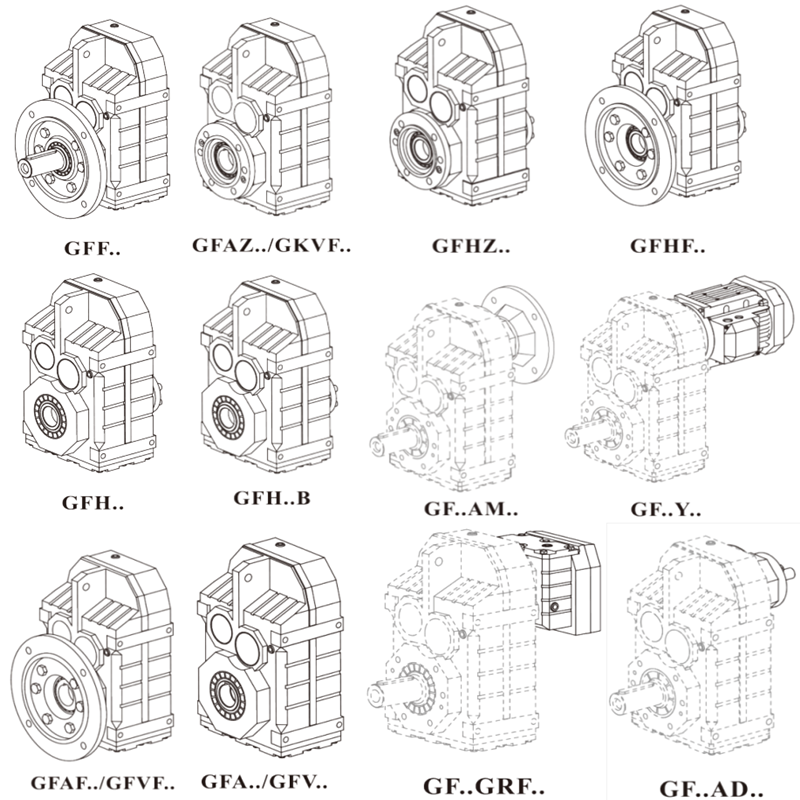

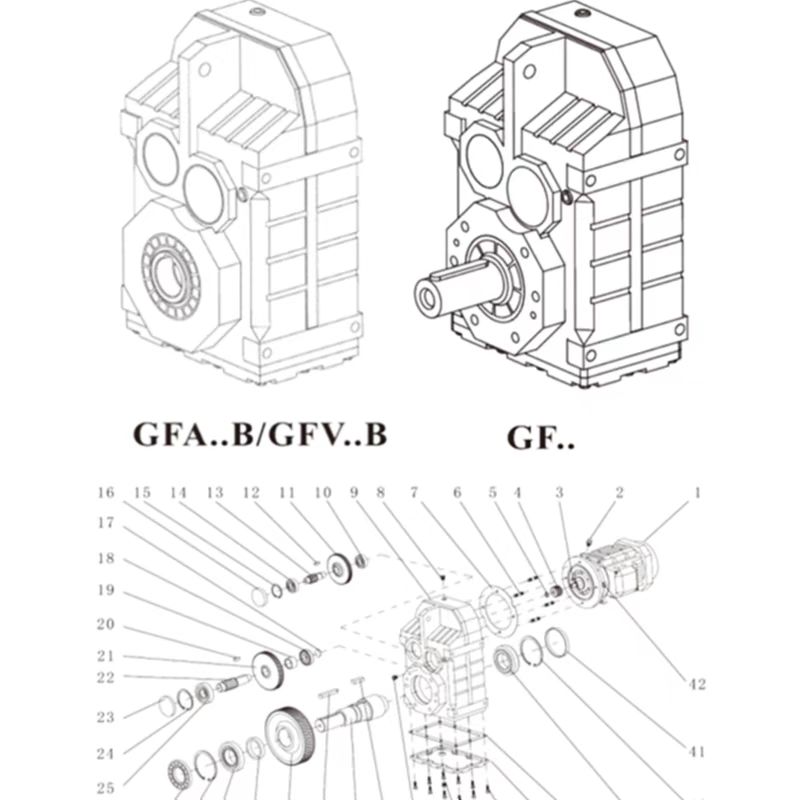

FAF27DM71S4齒輪減速機馬達類型：

F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機

FA..B底腳空心軸安裝平行軸—斜齒輪減速機

FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機

FA..空心軸安裝平行軸—斜齒輪減速機

FV..花鍵空心軸安裝平行軸—斜齒輪減速機

FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機

FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FAZ..是B14法蘭安裝平行軸—斜齒輪減速機

FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機

FF..是B5法蘭安裝平行軸—斜齒輪減速機

FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

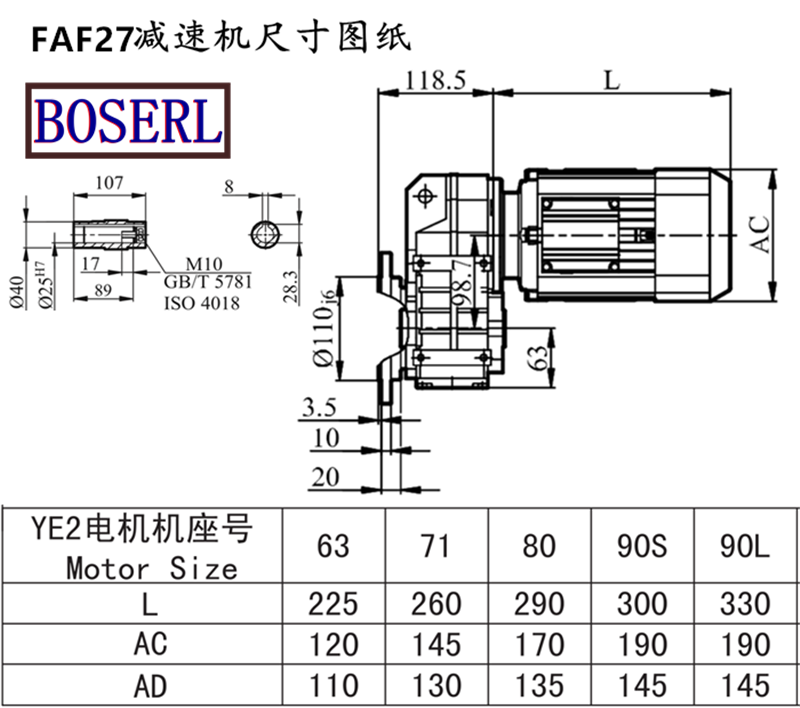

FAF27DM71S4齒輪減速機馬達安裝尺寸圖紙


FAF27DM71S4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機

關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家

FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機

FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
