FAF27DRE63M4詳細信息
FAF27DRE63M4
訂購熱線：13360667204
關鍵詞：一分鐘346轉減速機電機_FAF27DRE63M4_FAF27DM63M4
FAF27DRE63M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF27DRE63M4 | 140.74 | 0.12KW | 9.80rpm | 117N.m | 15.5Kg | 4500N | 1.10 |
| FAF27DRE63M4 | 129.09 | 0.12KW | 11.0rpm | 107N.m | 15.5Kg | 4500N | 1.20 |
| FAF27DRE63M4 | 109.90 | 0.12KW | 13.0rpm | 91N.m | 15.5Kg | 4500N | 1.40 |
| FAF27DRE63M4 | 94.76 | 0.12KW | 15.0rpm | 79N.m | 15.5Kg | 4500N | 1.65 |
| FAF27DRE63M4 | 88.32 | 0.12KW | 16.0rpm | 73N.m | 15.5Kg | 4500N | 1.75 |
| FAF27DRE63M4 | 77.21 | 0.12KW | 18.0rpm | 64N.m | 15.5Kg | 4500N | 2.00 |
| FAF27DRE63M4 | 72.37 | 0.12KW | 19.0rpm | 60N.m | 15.5Kg | 4500N | 2.20 |
| FAF27DRE63M4 | 63.86 | 0.12KW | 22.0rpm | 53N.m | 15.5Kg | 4500N | 2.40 |
| FAF27DRE63M4 | 56.62 | 0.12KW | 24.0rpm | 47N.m | 15.5Kg | 4500N | 2.80 |
| FAF27DRE63M4 | 50.19 | 0.12KW | 28.0rpm | 42N.m | 15.5Kg | 4500N | 3.10 |
| FAF27DRE63M4 | 46.78 | 0.12KW | 30.0rpm | 39N.m | 15.5Kg | 4500N | 3.40 |
| FAF27DRE63M4 | 40.89 | 0.12KW | 34.0rpm | 34N.m | 15.5Kg | 4500N | 3.80 |
| FAF27DRE63M4 | 38.33 | 0.12KW | 36.0rpm | 32N.m | 15.5Kg | 4430N | 4.10 |
| FAF27DRE63M4 | 33.83 | 0.12KW | 41.0rpm | 28N.m | 15.5Kg | 4270N | 4.60 |
| FAF27DRE63M4 | 29.56 | 0.12KW | 47.0rpm | 24N.m | 15.5Kg | 4100N | 5.30 |
| FAF27DRE63M4 | 27.18 | 0.12KW | 51.0rpm | 23N.m | 15.5Kg | 4000N | 5.80 |
| FAF27DRE63M4 | 23.25 | 0.12KW | 59.0rpm | 19N.m | 15.5Kg | 3820N | 6.70 |
| FAF27DRE63M4 | 20.15 | 0.12KW | 68.0rpm | 17N.m | 15.5Kg | 3650N | 7.80 |
| FAF27DRE63M4 | 18.84 | 0.12KW | 73.0rpm | 16N.m | 15.5Kg | 3580N | 8.30 |
| FAF27DRE63M4 | 16.28 | 0.12KW | 85.0rpm | 14N.m | 15.5Kg | 3420N | 9.60 |
| FAF27DRE63M4 | 13.84 | 0.12KW | 100rpm | 12N.m | 15.5Kg | 3250N | 11.0 |
| FAF27DRE63M4 | 12.35 | 0.12KW | 112rpm | 10N.m | 15.5Kg | 3140N | 13.0 |
| FAF27DRE63M4 | 10.55 | 0.12KW | 131rpm | 8.8N.m | 15.5Kg | 2990N | 15.0 |
| FAF27DRE63M4 | 9.88 | 0.12KW | 140rpm | 8.2N.m | 15.5Kg | 2920N | 16.0 |
| FAF27DRE63M4 | 9.40 | 0.12KW | 147rpm | 7.8N.m | 15.5Kg | 2870N | 17.0 |
| FAF27DRE63M4 | 8.13 | 0.12KW | 170rpm | 6.7N.m | 15.5Kg | 2740N | 18.0 |
| FAF27DRE63M4 | 6.91 | 0.12KW | 200rpm | 5.7N.m | 15.5Kg | 2600N | 20.0 |
| FAF27DRE63M4 | 6.17 | 0.12KW | 224rpm | 5.1N.m | 15.5Kg | 2510N | 21.0 |
| FAF27DRE63M4 | 5.27 | 0.12KW | 262rpm | 4.4N.m | 15.5Kg | 2390N | 23.0 |
| FAF27DRE63M4 | 4.93 | 0.12KW | 280rpm | 4.1N.m | 15.5Kg | 2340N | 23.0 |
| FAF27DRE63M4 | 4.16 | 0.12KW | 332rpm | 3.5N.m | 15.5Kg | 2210N | 25.0 |
FAF27DM63M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FAF27DM63M4 | 140.74 | 0.12KW | 9.80rpm | 117N.m | 15.5Kg | 4500N | 1.10 |
| FAF27DM63M4 | 129.09 | 0.12KW | 11.0rpm | 107N.m | 15.5Kg | 4500N | 1.20 |
| FAF27DM63M4 | 109.90 | 0.12KW | 13.0rpm | 91N.m | 15.5Kg | 4500N | 1.40 |
| FAF27DM63M4 | 94.76 | 0.12KW | 15.0rpm | 79N.m | 15.5Kg | 4500N | 1.65 |
| FAF27DM63M4 | 88.32 | 0.12KW | 16.0rpm | 73N.m | 15.5Kg | 4500N | 1.75 |
| FAF27DM63M4 | 77.21 | 0.12KW | 18.0rpm | 64N.m | 15.5Kg | 4500N | 2.00 |
| FAF27DM63M4 | 72.37 | 0.12KW | 19.0rpm | 60N.m | 15.5Kg | 4500N | 2.20 |
| FAF27DM63M4 | 63.86 | 0.12KW | 22.0rpm | 53N.m | 15.5Kg | 4500N | 2.40 |
| FAF27DM63M4 | 56.62 | 0.12KW | 24.0rpm | 47N.m | 15.5Kg | 4500N | 2.80 |
| FAF27DM63M4 | 50.19 | 0.12KW | 28.0rpm | 42N.m | 15.5Kg | 4500N | 3.10 |
| FAF27DM63M4 | 46.78 | 0.12KW | 30.0rpm | 39N.m | 15.5Kg | 4500N | 3.40 |
| FAF27DM63M4 | 40.89 | 0.12KW | 34.0rpm | 34N.m | 15.5Kg | 4500N | 3.80 |
| FAF27DM63M4 | 38.33 | 0.12KW | 36.0rpm | 32N.m | 15.5Kg | 4430N | 4.10 |
| FAF27DM63M4 | 33.83 | 0.12KW | 41.0rpm | 28N.m | 15.5Kg | 4270N | 4.60 |
| FAF27DM63M4 | 29.56 | 0.12KW | 47.0rpm | 24N.m | 15.5Kg | 4100N | 5.30 |
| FAF27DM63M4 | 27.18 | 0.12KW | 51.0rpm | 23N.m | 15.5Kg | 4000N | 5.80 |
| FAF27DM63M4 | 23.25 | 0.12KW | 59.0rpm | 19N.m | 15.5Kg | 3820N | 6.70 |
| FAF27DM63M4 | 20.15 | 0.12KW | 68.0rpm | 17N.m | 15.5Kg | 3650N | 7.80 |
| FAF27DM63M4 | 18.84 | 0.12KW | 73.0rpm | 16N.m | 15.5Kg | 3580N | 8.30 |
| FAF27DM63M4 | 16.28 | 0.12KW | 85.0rpm | 14N.m | 15.5Kg | 3420N | 9.60 |
| FAF27DM63M4 | 13.84 | 0.12KW | 100rpm | 12N.m | 15.5Kg | 3250N | 11.0 |
| FAF27DM63M4 | 12.35 | 0.12KW | 112rpm | 10N.m | 15.5Kg | 3140N | 13.0 |
| FAF27DM63M4 | 10.55 | 0.12KW | 131rpm | 8.8N.m | 15.5Kg | 2990N | 15.0 |
| FAF27DM63M4 | 9.88 | 0.12KW | 140rpm | 8.2N.m | 15.5Kg | 2920N | 16.0 |
| FAF27DM63M4 | 9.40 | 0.12KW | 147rpm | 7.8N.m | 15.5Kg | 2870N | 17.0 |
| FAF27DM63M4 | 8.13 | 0.12KW | 170rpm | 6.7N.m | 15.5Kg | 2740N | 18.0 |
| FAF27DM63M4 | 6.91 | 0.12KW | 200rpm | 5.7N.m | 15.5Kg | 2600N | 20.0 |
| FAF27DM63M4 | 6.17 | 0.12KW | 224rpm | 5.1N.m | 15.5Kg | 2510N | 21.0 |
| FAF27DM63M4 | 5.27 | 0.12KW | 262rpm | 4.4N.m | 15.5Kg | 2390N | 23.0 |
| FAF27DM63M4 | 4.93 | 0.12KW | 280rpm | 4.1N.m | 15.5Kg | 2340N | 23.0 |
| FAF27DM63M4 | 4.16 | 0.12KW | 332rpm | 3.5N.m | 15.5Kg | 2210N | 25.0 |
FAF27DRE63M4減速機電動機類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

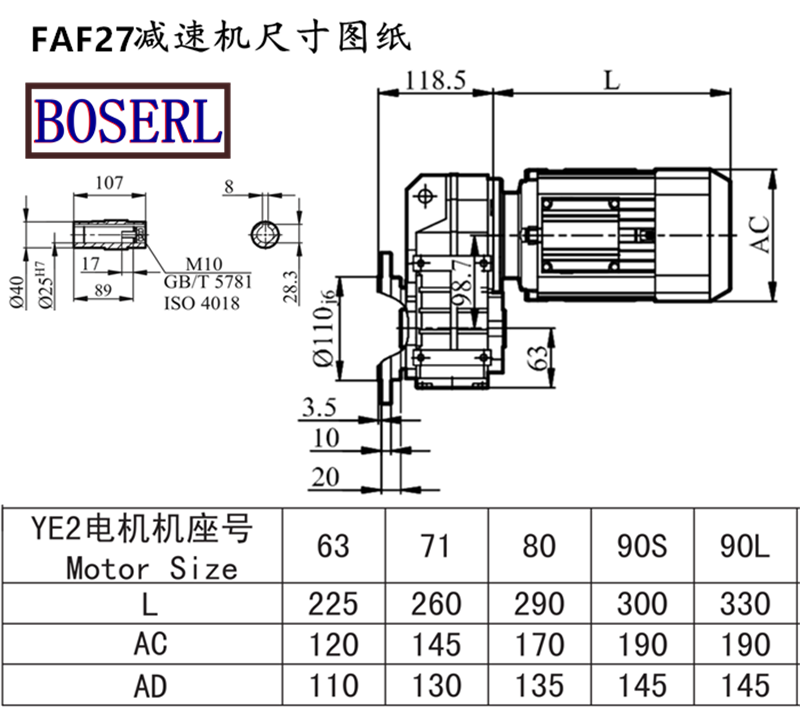

FAF27DRE63M4減速機電動機安裝尺寸圖紙
FAF27DRE63M4減速機電動機生產廠家，看廠請?zhí)崆叭祛A(yù)約三相220V電機減速機
關鍵詞:FAF系列減速機與電機_220V電機減速機一套_三相220V電機減速器_380V電機減速機_三相380V電機減速器_三相減速電機_三相減速機生產廠家
FAF系列減速機型號：FAF27減速機,FAF37減速機,FAF47減速機,FAF67減速機,FAF77減速機,FAF87減速機,FAF97減速機,FAF107減速機,FAF127減速機,FAF157減速機
FAF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 一分鐘346轉減速機電機 FAF27DRE63M4 FAF27DM63M4
