KF57R37DM71S4詳細信息
KF57R37DM71S4
訂購熱線：13360667204
關鍵詞：1.2KW伺服電機傘齒輪減速器_KF57R37DM71S4_KF57R37DRS80S4
KF57R37DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF57R37DM71S4 | 421 | 0.25KW | 3.10r/min | 665N.m | 45.5kg | 4200N | 0.90 |
| KF57R37DM71S4 | 362 | 0.25KW | 3.60r/min | 590N.m | 45.5kg | 7690N | 1.00 |
| KF57R37DM71S4 | 319 | 0.25KW | 4.10r/min | 520N.m | 45.5kg | 8260N | 1.15 |
| KF57R37DM71S4 | 280 | 0.25KW | 4.60r/min | 440N.m | 45.5kg | 8680N | 1.35 |
| KF57R37DM71S4 | 246 | 0.25KW | 5.30r/min | 390N.m | 45.5kg | 8920N | 1.55 |
| KF57R37DM71S4 | 215 | 0.25KW | 6.00r/min | 345N.m | 45.5kg | 9110N | 1.75 |
| KF57R37DM71S4 | 192 | 0.25KW | 6.80r/min | 305N.m | 45.5kg | 9260N | 1.95 |
| KF57R37DM71S4 | 166 | 0.25KW | 7.80r/min | 265N.m | 45.5kg | 9410N | 2.30 |
| KF57R37DM71S4 | 145 | 0.25KW | 9.00r/min | 230N.m | 45.5kg | 9530N | 2.60 |
| KF57R37DM71S4 | 129 | 0.25KW | 10.0r/min | 210N.m | 45.5kg | 9600N | 2.80 |
| KF57R37DM71S4 | 111 | 0.25KW | 12.0r/min | 178N.m | 45.5kg | 9700N | 3.40 |
| KF57R37DM71S4 | 97 | 0.25KW | 13.0r/min | 156N.m | 45.5kg | 9770N | 3.80 |
KF57R37DRS80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KF57R37DRS80S4 | 192 | 0.55KW | 7.20r/min | 655N.m | 50.5kg | 5460N | 0.90 |
| KF57R37DRS80S4 | 166 | 0.55KW | 8.30r/min | 570N.m | 50.5kg | 7870N | 1.05 |
| KF57R37DRS80S4 | 145 | 0.55KW | 9.60r/min | 500N.m | 50.5kg | 8420N | 1.20 |
| KF57R37DRS80S4 | 129 | 0.55KW | 11.0r/min | 445N.m | 50.5kg | 8660N | 1.35 |
| KF57R37DRS80S4 | 111 | 0.55KW | 12.0r/min | 380N.m | 50.5kg | 8960N | 1.55 |
| KF57R37DRS80S4 | 97 | 0.55KW | 14.0r/min | 335N.m | 50.5kg | 9140N | 1.80 |
KF57R37DM71S4減速機類型：
K57R37DM71S4底腳安裝斜齒輪—傘齒輪減速電機
KA57BR37DM71S4底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV57BR37DM71S4底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH57BR37DM71S4底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF57R37DM71S4B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF57R37DM71S4B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF57R37DM71S4B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF57R37DM71S4B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA57R37DM71S4空心軸斜齒輪─傘齒輪減速電機
KV57R37DM71S4花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH57R37DM71S4空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT57R37DM71S4空心軸安裝斜齒輪—傘齒輪減速電機
KAZ57R37DM71S4B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ57R37DM71S4B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ57R37DM71S4B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機

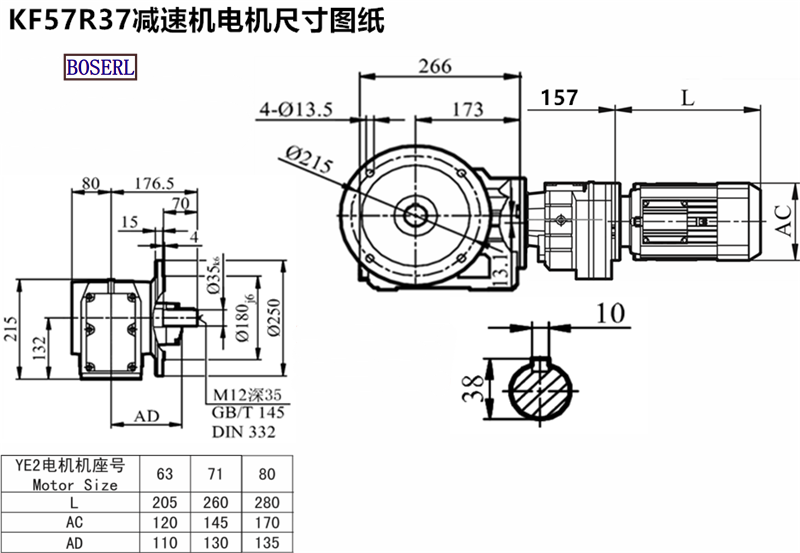

KF57R37DM71S4減速機馬達安裝尺寸圖紙
KF57R37DM71S4減速機電機生產廠家，看廠請?zhí)崆叭祛A(yù)約大功率減速電機
關鍵詞:KF系列齒輪減速機與電機_大功率減速電機_大負載減速器_大負載減速機電機_大功率電機減速機_大功率電動機減速機_大負載電動機減速機一套生產廠家
KF系列減速機型號：KF37減速機,KF47減速機,KF57減速機,KF67減速機,KF77減速機,KF87減速機,KF97減速機,KF107減速機,KF127減速機,KF157減速機,KF167減速機,KF187減速機
KF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.2KW伺服電機傘齒輪減速器 KF57R37DM71S4 KF57R37DRS80S4
