SF87DRN132MC4詳細信息
SF87DRN132MC4
訂購熱線：13360667204
關鍵詞：75千瓦臥式減速器電機一體機_SF87DRN132MC4_SF87DRN132ML4
SF87DRN132MC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF87DRN132MC4 | 44.03 | 7.5KW | 33.0rpm | 1910N.m | 173kg | 27700N | 0.85 |
| SF87DRN132MC4 | 39.10 | 7.5KW | 38.0rpm | 1700N.m | 173kg | 27300N | 0.95 |
| SF87DRN132MC4 | 34.96 | 7.5KW | 42.0rpm | 1520N.m | 173kg | 26900N | 1.05 |
| SF87DRN132MC4 | 31.43 | 7.5KW | 47.0rpm | 1370N.m | 173kg | 26400N | 1.15 |
| SF87DRN132MC4 | 27.28 | 7.5KW | 54.0rpm | 1200N.m | 173kg | 25800N | 1.35 |
| SF87DRN132MC4 | 25.50 | 7.5KW | 58.0rpm | 1150N.m | 173kg | 23400N | 1.10 |
| SF87DRN132MC4 | 21.43 | 7.5KW | 69.0rpm | 970N.m | 173kg | 22900N | 1.30 |
| SF87DRN132MC4 | 19.70 | 7.5KW | 75.0rpm | 890N.m | 173kg | 22600N | 1.40 |
| SF87DRN132MC4 | 17.49 | 7.5KW | 84.0rpm | 795N.m | 173kg | 22200N | 1.55 |
| SF87DRN132MC4 | 15.64 | 7.5KW | 94.0rpm | 710N.m | 173kg | 21800N | 1.75 |
| SF87DRN132MC4 | 14.06 | 7.5KW | 105rpm | 640N.m | 173kg | 21400N | 1.95 |
| SF87DRN132MC4 | 12.21 | 7.5KW | 120rpm | 555N.m | 173kg | 20800N | 2.20 |
| SF87DRN132MC4 | 10.93 | 7.5KW | 135rpm | 500N.m | 173kg | 20400N | 2.50 |
| SF87DRN132MC4 | 9.07 | 7.5KW | 162rpm | 415N.m | 173kg | 19600N | 2.70 |
| SF87DRN132MC4 | 7.88 | 7.5KW | 186rpm | 360N.m | 173kg | 19000N | 2.80 |
SF87DRN132ML4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| SF87DRN132ML4 | 44.03 | 7.5KW | 33.0rpm | 1910N.m | 173kg | 27700N | 0.85 |
| SF87DRN132ML4 | 39.10 | 7.5KW | 38.0rpm | 1700N.m | 173kg | 27300N | 0.95 |
| SF87DRN132ML4 | 34.96 | 7.5KW | 42.0rpm | 1520N.m | 173kg | 26900N | 1.05 |
| SF87DRN132ML4 | 31.43 | 7.5KW | 47.0rpm | 1370N.m | 173kg | 26400N | 1.15 |
| SF87DRN132ML4 | 27.28 | 7.5KW | 54.0rpm | 1200N.m | 173kg | 25800N | 1.35 |
| SF87DRN132ML4 | 25.50 | 7.5KW | 58.0rpm | 1150N.m | 173kg | 23400N | 1.10 |
| SF87DRN132ML4 | 21.43 | 7.5KW | 69.0rpm | 970N.m | 173kg | 22900N | 1.30 |
| SF87DRN132ML4 | 19.70 | 7.5KW | 75.0rpm | 890N.m | 173kg | 22600N | 1.40 |
| SF87DRN132ML4 | 17.49 | 7.5KW | 84.0rpm | 795N.m | 173kg | 22200N | 1.55 |
| SF87DRN132ML4 | 15.64 | 7.5KW | 94.0rpm | 710N.m | 173kg | 21800N | 1.75 |
| SF87DRN132ML4 | 14.06 | 7.5KW | 105rpm | 640N.m | 173kg | 21400N | 1.95 |
| SF87DRN132ML4 | 12.21 | 7.5KW | 120rpm | 555N.m | 173kg | 20800N | 2.20 |
| SF87DRN132ML4 | 10.93 | 7.5KW | 135rpm | 500N.m | 173kg | 20400N | 2.50 |
| SF87DRN132ML4 | 9.07 | 7.5KW | 162rpm | 415N.m | 173kg | 19600N | 2.70 |
| SF87DRN132ML4 | 7.88 | 7.5KW | 186rpm | 360N.m | 173kg | 19000N | 2.80 |

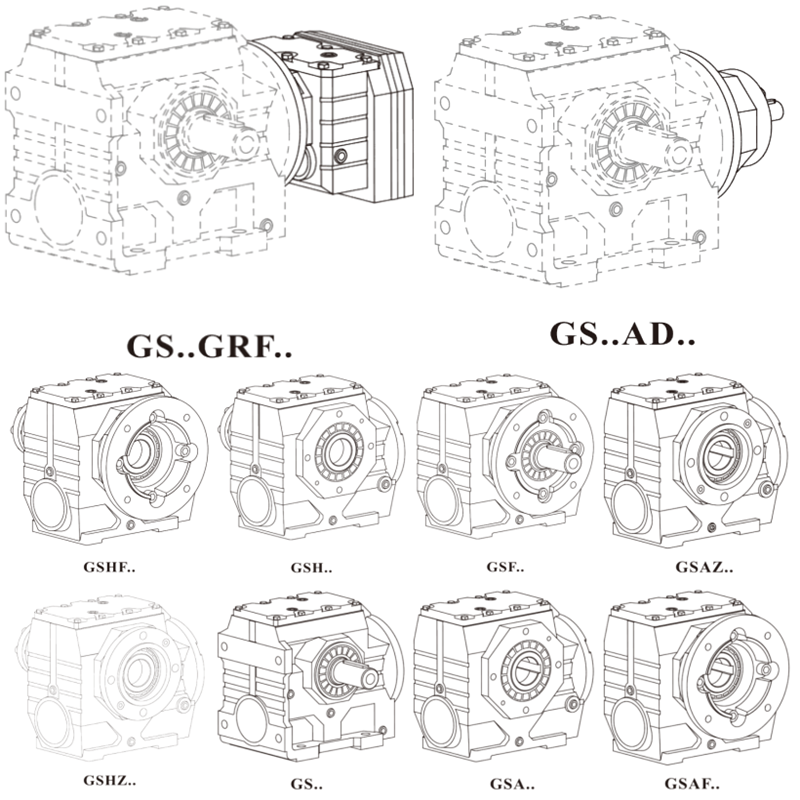

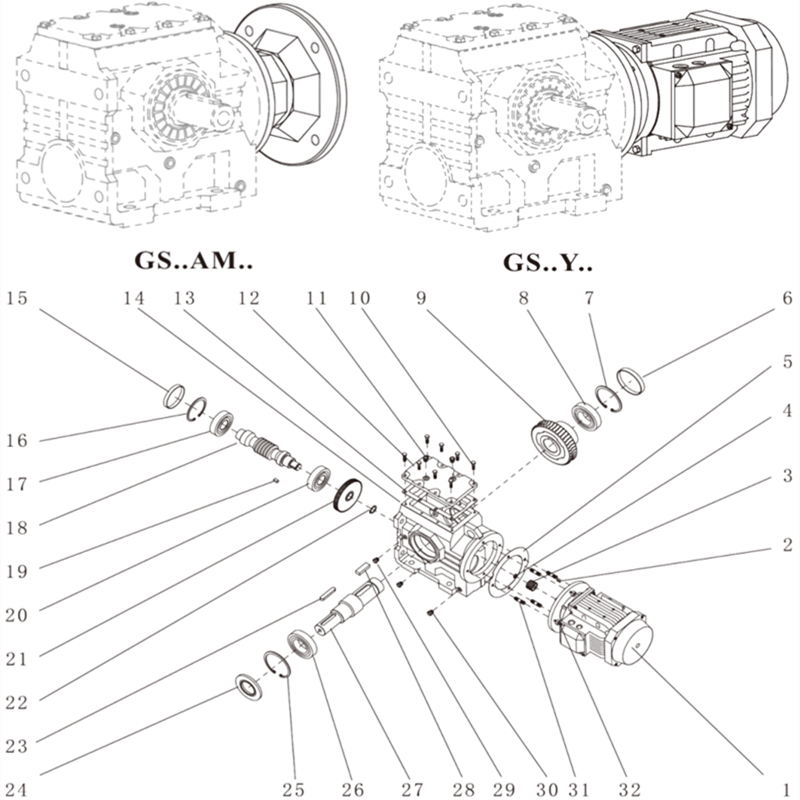

SF87DRN132MC4減速器電動機類型：
S..DR..底腳安裝斜齒輪自鎖減速機
SA..DR..空心軸安裝斜齒輪蝸輪蝸桿減速機
SAF..DR..是B5法蘭安裝款式斜齒輪蝸輪蝸桿減速機
SAZ..DR..是B14法蘭空心軸安裝斜齒輪蝸輪蝸桿減速機
SF..DR..是B5法蘭安裝斜齒輪蝸輪蝸桿減速機
SH..DR..是空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHF..DR..是B5法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機
SHZ..DR..是B14法蘭空心軸鎖緊盤安裝斜齒輪蝸輪蝸桿減速機

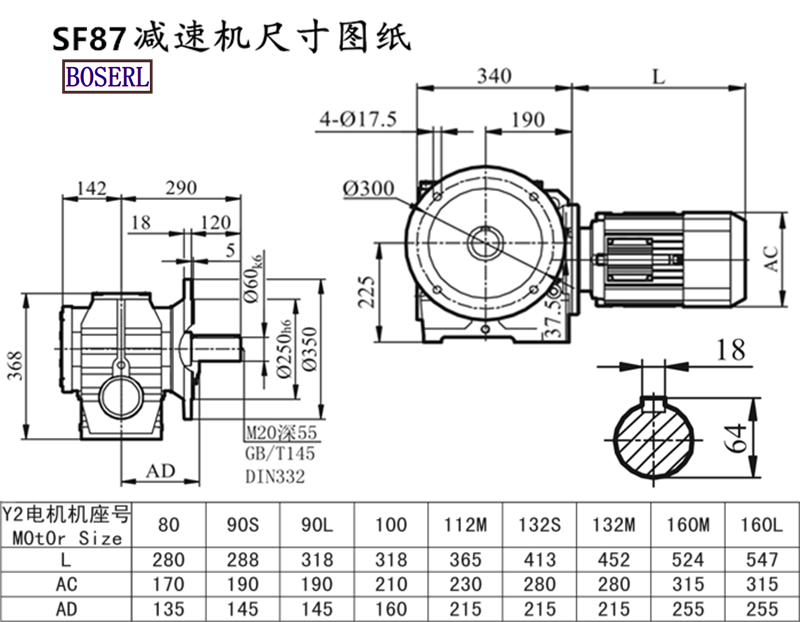

SF87DRN132MC4減速器電動機安裝尺寸圖紙
SF87DRN132MC4減速器電動機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
低速大扭矩減速電機應用案例展示：
關鍵詞:SF系列減速機_低速大扭矩減速器與電機_低轉數高扭矩減速電機一套_低速大扭矩減速機_低轉數大扭矩電機_低轉數大功率電機_SF系列減速機生產廠家
SF系列減速機型號：SF37減速機,SF47減速機,SF57減速機,SF67減速機,SF77減速機,SF87減速機,SF97減速機
SF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 75千瓦臥式減速器電機一體機 SF87DRN132MC4 SF87DRN132ML4
- 上一條SF87DRS132L4
- 下一條SF87DV160MC4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| SF87DRN132MC4減速機樣本 |
|
| SF87DRN132MC4減速機三維圖紙 |
|
